干掉mapper.xml！MyBatis新特性动态SQL真香
当我们使用MyBatis的时候，需要在mapper.xml中书写大量的SQL语句。当我们使用MyBatis Generator（MBG）作为代码生成器时，也会生成大量的mapper.xml文件。其实从MBG 1.3.6版本以后，MyBatis官方已经推荐使用Dynamic SQL，使用这一新特性基本就不用写mapper.xml文件了，使用起来非常方便，推荐给大家！
Dynamic SQL简介
在我们使用Spring的时候，有XML和Java两种配置方式。在使用SpringBoot时，已经推荐使用Java配置，基本不用xml配置了。使用Dynamic SQL就好比是使用Java的方式来操作MyBatis。Dynamic SQL是用于生成动态SQL语句的框架，提倡使用Java API的方式来实现SQL操作，支持复杂查询和多表查询。
Dynamic SQL具有如下特性：
- 类型安全：可以确保参数类型和数据库字段类型相匹配；
- 富有表现力：语句的构建方式可以清楚地传达其含义；
- 使用灵活：可以使用and，or和nested条件的任意组合来构建where子句；
- 扩展性强：可以同时为MyBatis3, Spring JDBC和纯JDBC框架生成SQL语句；
- 轻量级：只需添加一个小的依赖项，没有传递依赖。
开始使用
首先我们通过一个入门示例将Dynamic SQL用起来，该示例会包含基础的CRUD操作。
集成Dynamic SQL
- 在pom.xml中添加如下依赖，对比之前使用MBG，仅仅多添加了MyBatis的动态SQL依赖；
<dependencies> <!--SpringBoot整合MyBatis--> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>2.1.3</version> </dependency> <!--MyBatis分页插件--> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.3.0</version> </dependency> <!--集成druid连接池--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency> <!-- MyBatis 生成器 --> <dependency> <groupId>org.mybatis.generator</groupId> <artifactId>mybatis-generator-core</artifactId> <version>1.4.0</version> </dependency> <!-- MyBatis 动态SQL支持 --> <dependency> <groupId>org.mybatis.dynamic-sql</groupId> <artifactId>mybatis-dynamic-sql</artifactId> <version>1.2.1</version> </dependency> <!--Mysql数据库驱动--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.15</version> </dependency> </dependencies> - 在application.yml中对数据源和MyBatis的mapper.xml文件路径进行配置，只需配置自定义mapper.xml路径即可；
spring: datasource: url: jdbc:mysql://localhost:3306/mall?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai username: root password: root mybatis: mapper-locations: - classpath:dao/*.xml - 添加Java配置，用于扫描Mapper接口路径，MBG生成的放在mapper包下，自定义的放在dao包下。
/** * MyBatis配置类 * Created by macro on 2019/4/8. */ @Configuration @MapperScan({"com.macro.mall.tiny.mbg.mapper","com.macro.mall.tiny.dao"}) public class MyBatisConfig { } 使用代码生成器
- 在使用MBG生成代码前，我们还需要对其进行一些配置，首先在generator.properties文件中配置好数据库连接信息；
jdbc.driverClass=com.mysql.cj.jdbc.Driver jdbc.connectionURL=jdbc:mysql://localhost:3306/mall?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai jdbc.userId=root jdbc.password=root - 然后在generatorConfig.xml文件中对MBG进行配置，配置属性说明直接参考注释即可；
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN" "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd"> <generatorConfiguration> <properties resource="generator.properties"/> <context id="MySqlContext" targetRuntime="MyBatis3DynamicSQL"> <property name="beginningDelimiter" value="`"/> <property name="endingDelimiter" value="`"/> <property name="javaFileEncoding" value="UTF-8"/> <!-- 为模型生成序列化方法--> <plugin type="org.mybatis.generator.plugins.SerializablePlugin"/> <!-- 为生成的Java模型创建一个toString方法 --> <plugin type="org.mybatis.generator.plugins.ToStringPlugin"/> <!--可以自定义生成model的代码注释--> <commentGenerator type="com.macro.mall.tiny.mbg.CommentGenerator"> <!-- 是否去除自动生成的注释 true：是 ：false:否 --> <property name="suppressAllComments" value="true"/> <property name="suppressDate" value="true"/> <property name="addRemarkComments" value="true"/> </commentGenerator> <!--配置数据库连接--> <jdbcConnection driverClass="${jdbc.driverClass}" connectionURL="${jdbc.connectionURL}" userId="${jdbc.userId}" password="${jdbc.password}"> <!--解决mysql驱动升级到8.0后不生成指定数据库代码的问题--> <property name="nullCatalogMeansCurrent" value="true" /> </jdbcConnection> <!--指定生成model的路径--> <javaModelGenerator targetPackage="com.macro.mall.tiny.mbg.model" targetProject="mall-tiny-dynamic-sql\src\main\java"/> <!--指定生成mapper接口的的路径--> <javaClientGenerator type="XMLMAPPER" targetPackage="com.macro.mall.tiny.mbg.mapper" targetProject="mall-tiny-dynamic-sql\src\main\java"/> <!--生成全部表tableName设为%--> <table tableName="ums_admin"> <generatedKey column="id" sqlStatement="MySql" identity="true"/> </table> <table tableName="ums_role"> <generatedKey column="id" sqlStatement="MySql" identity="true"/> </table> <table tableName="ums_admin_role_relation"> <generatedKey column="id" sqlStatement="MySql" identity="true"/> </table> </context> </generatorConfiguration> - 与之前使用MBG有所不同，targetRuntime需要改为MyBatis3DynamicSql，用于配置生成mapper.xml路径的sqlMapGenerator标签也不需要配置了；
- 之前使用MBG时自定义了实体类注解的生成，写了个类CommentGenerator继承DefaultCommentGenerator，在addFieldComment方法中将Swagger注解写入到了实体类的属性上；
/** * 自定义注释生成器 * Created by macro on 2018/4/26. */ public class CommentGenerator extends DefaultCommentGenerator { /** * 给字段添加注释 */ @Override public void addFieldComment(Field field, IntrospectedTable introspectedTable, IntrospectedColumn introspectedColumn) { String remarks = introspectedColumn.getRemarks(); //根据参数和备注信息判断是否添加备注信息 if(addRemarkComments&&StringUtility.stringHasValue(remarks)){ //数据库中特殊字符需要转义 if(remarks.contains("\"")){ remarks = remarks.replace("\"","'"); } //给model的字段添加swagger注解 field.addJavaDocLine("@ApiModelProperty(value = \""+remarks+"\")"); } } } - 在使用Dynamic SQL的时候，这种方法已经无用，需要在addFieldAnnotation中将Swagger注解写入到了实体类的属性上；
/** * 自定义注释生成器 * Created by macro on 2018/4/26. */ public class CommentGenerator extends DefaultCommentGenerator { @Override public void addFieldAnnotation(Field field, IntrospectedTable introspectedTable, IntrospectedColumn introspectedColumn, Set<FullyQualifiedJavaType> imports) { if (!addRemarkComments || CollUtil.isEmpty(imports)) return; long count = imports.stream() .filter(item -> API_MODEL_PROPERTY_FULL_CLASS_NAME.equals(item.getFullyQualifiedName())) .count(); if (count <= 0L) { return; } String remarks = introspectedColumn.getRemarks(); //根据参数和备注信息判断是否添加备注信息 if (StringUtility.stringHasValue(remarks)) { //数据库中特殊字符需要转义 if (remarks.contains("\"")) { remarks = remarks.replace("\"", "'"); } //给model的字段添加swagger注解 field.addJavaDocLine("@ApiModelProperty(value = \"" + remarks + "\")"); } } } - 一切准备就绪，执行Generator类的main方法，生成代码结构信息如下，可以发现已经不再生成mapper.xml文件和Example类，取而代之的是生成了DynamicSqlSupport类。
实现基本的CRUD操作
这里使用的是mall-tiny项目中权限管理功能相关表，具体可以参考《还在从零开始搭建项目？手撸了款快速开发脚手架！》。
- 查看下MBG生成的Mapper接口，比之前使用MBG时增加了很多方法，并且有了一些默认的方法实现，可见之前在mapper.xml中的实现都已经转移到Mapper接口中去了，单表CRUD直接调用对应方法即可；
@Mapper public interface UmsAdminMapper { @Generated("org.mybatis.generator.api.MyBatisGenerator") BasicColumn[] selectList = BasicColumn.columnList(id, username, password, icon, email, nickName, note, createTime, loginTime, status); @Generated("org.mybatis.generator.api.MyBatisGenerator") @SelectProvider(type=SqlProviderAdapter.class, method="select") long count(SelectStatementProvider selectStatement); @Generated("org.mybatis.generator.api.MyBatisGenerator") @DeleteProvider(type=SqlProviderAdapter.class, method="delete") int delete(DeleteStatementProvider deleteStatement); @Generated("org.mybatis.generator.api.MyBatisGenerator") @InsertProvider(type=SqlProviderAdapter.class, method="insert") @SelectKey(statement="SELECT LAST_INSERT_ID()", keyProperty="record.id", before=false, resultType=Long.class) int insert(InsertStatementProvider<UmsAdmin> insertStatement); @Generated("org.mybatis.generator.api.MyBatisGenerator") @SelectProvider(type=SqlProviderAdapter.class, method="select") @ResultMap("UmsAdminResult") Optional<UmsAdmin> selectOne(SelectStatementProvider selectStatement); @Generated("org.mybatis.generator.api.MyBatisGenerator") @SelectProvider(type=SqlProviderAdapter.class, method="select") @Results(id="UmsAdminResult", value = { @Result(column="id", property="id", jdbcType=JdbcType.BIGINT, id=true), @Result(column="username", property="username", jdbcType=JdbcType.VARCHAR), @Result(column="password", property="password", jdbcType=JdbcType.VARCHAR), @Result(column="icon", property="icon", jdbcType=JdbcType.VARCHAR), @Result(column="email", property="email", jdbcType=JdbcType.VARCHAR), @Result(column="nick_name", property="nickName", jdbcType=JdbcType.VARCHAR), @Result(column="note", property="note", jdbcType=JdbcType.VARCHAR), @Result(column="create_time", property="createTime", jdbcType=JdbcType.TIMESTAMP), @Result(column="login_time", property="loginTime", jdbcType=JdbcType.TIMESTAMP), @Result(column="status", property="status", jdbcType=JdbcType.INTEGER) }) List<UmsAdmin> selectMany(SelectStatementProvider selectStatement); @Generated("org.mybatis.generator.api.MyBatisGenerator") @UpdateProvider(type=SqlProviderAdapter.class, method="update") int update(UpdateStatementProvider updateStatement); @Generated("org.mybatis.generator.api.MyBatisGenerator") default long count(CountDSLCompleter completer) { return MyBatis3Utils.countFrom(this::count, umsAdmin, completer); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int delete(DeleteDSLCompleter completer) { return MyBatis3Utils.deleteFrom(this::delete, umsAdmin, completer); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int deleteByPrimaryKey(Long id_) { return delete(c -> c.where(id, isEqualTo(id_)) ); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int insert(UmsAdmin record) { return MyBatis3Utils.insert(this::insert, record, umsAdmin, c -> c.map(username).toProperty("username") .map(password).toProperty("password") .map(icon).toProperty("icon") .map(email).toProperty("email") .map(nickName).toProperty("nickName") .map(note).toProperty("note") .map(createTime).toProperty("createTime") .map(loginTime).toProperty("loginTime") .map(status).toProperty("status") ); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int insertSelective(UmsAdmin record) { return MyBatis3Utils.insert(this::insert, record, umsAdmin, c -> c.map(username).toPropertyWhenPresent("username", record::getUsername) .map(password).toPropertyWhenPresent("password", record::getPassword) .map(icon).toPropertyWhenPresent("icon", record::getIcon) .map(email).toPropertyWhenPresent("email", record::getEmail) .map(nickName).toPropertyWhenPresent("nickName", record::getNickName) .map(note).toPropertyWhenPresent("note", record::getNote) .map(createTime).toPropertyWhenPresent("createTime", record::getCreateTime) .map(loginTime).toPropertyWhenPresent("loginTime", record::getLoginTime) .map(status).toPropertyWhenPresent("status", record::getStatus) ); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default Optional<UmsAdmin> selectOne(SelectDSLCompleter completer) { return MyBatis3Utils.selectOne(this::selectOne, selectList, umsAdmin, completer); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default List<UmsAdmin> select(SelectDSLCompleter completer) { return MyBatis3Utils.selectList(this::selectMany, selectList, umsAdmin, completer); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default List<UmsAdmin> selectDistinct(SelectDSLCompleter completer) { return MyBatis3Utils.selectDistinct(this::selectMany, selectList, umsAdmin, completer); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default Optional<UmsAdmin> selectByPrimaryKey(Long id_) { return selectOne(c -> c.where(id, isEqualTo(id_)) ); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int update(UpdateDSLCompleter completer) { return MyBatis3Utils.update(this::update, umsAdmin, completer); } @Generated("org.mybatis.generator.api.MyBatisGenerator") static UpdateDSL<UpdateModel> updateAllColumns(UmsAdmin record, UpdateDSL<UpdateModel> dsl) { return dsl.set(username).equalTo(record::getUsername) .set(password).equalTo(record::getPassword) .set(icon).equalTo(record::getIcon) .set(email).equalTo(record::getEmail) .set(nickName).equalTo(record::getNickName) .set(note).equalTo(record::getNote) .set(createTime).equalTo(record::getCreateTime) .set(loginTime).equalTo(record::getLoginTime) .set(status).equalTo(record::getStatus); } @Generated("org.mybatis.generator.api.MyBatisGenerator") static UpdateDSL<UpdateModel> updateSelectiveColumns(UmsAdmin record, UpdateDSL<UpdateModel> dsl) { return dsl.set(username).equalToWhenPresent(record::getUsername) .set(password).equalToWhenPresent(record::getPassword) .set(icon).equalToWhenPresent(record::getIcon) .set(email).equalToWhenPresent(record::getEmail) .set(nickName).equalToWhenPresent(record::getNickName) .set(note).equalToWhenPresent(record::getNote) .set(createTime).equalToWhenPresent(record::getCreateTime) .set(loginTime).equalToWhenPresent(record::getLoginTime) .set(status).equalToWhenPresent(record::getStatus); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int updateByPrimaryKey(UmsAdmin record) { return update(c -> c.set(username).equalTo(record::getUsername) .set(password).equalTo(record::getPassword) .set(icon).equalTo(record::getIcon) .set(email).equalTo(record::getEmail) .set(nickName).equalTo(record::getNickName) .set(note).equalTo(record::getNote) .set(createTime).equalTo(record::getCreateTime) .set(loginTime).equalTo(record::getLoginTime) .set(status).equalTo(record::getStatus) .where(id, isEqualTo(record::getId)) ); } @Generated("org.mybatis.generator.api.MyBatisGenerator") default int updateByPrimaryKeySelective(UmsAdmin record) { return update(c -> c.set(username).equalToWhenPresent(record::getUsername) .set(password).equalToWhenPresent(record::getPassword) .set(icon).equalToWhenPresent(record::getIcon) .set(email).equalToWhenPresent(record::getEmail) .set(nickName).equalToWhenPresent(record::getNickName) .set(note).equalToWhenPresent(record::getNote) .set(createTime).equalToWhenPresent(record::getCreateTime) .set(loginTime).equalToWhenPresent(record::getLoginTime) .set(status).equalToWhenPresent(record::getStatus) .where(id, isEqualTo(record::getId)) ); } } - 生成代码中有一些DynamicSqlSupport类，比如UmsAdminDynamicSqlSupport，主要是把数据库表和字段抽象成了SqlTable和SqlColumn对象，估计是为了防止我们硬编码；
public final class UmsAdminDynamicSqlSupport { @Generated("org.mybatis.generator.api.MyBatisGenerator") public static final UmsAdmin umsAdmin = new UmsAdmin(); public static final SqlColumn<Long> id = umsAdmin.id; public static final SqlColumn<String> username = umsAdmin.username; public static final SqlColumn<String> password = umsAdmin.password; public static final SqlColumn<String> icon = umsAdmin.icon; public static final SqlColumn<String> email = umsAdmin.email; public static final SqlColumn<String> nickName = umsAdmin.nickName; public static final SqlColumn<String> note = umsAdmin.note; public static final SqlColumn<Date> createTime = umsAdmin.createTime; public static final SqlColumn<Date> loginTime = umsAdmin.loginTime; public static final SqlColumn<Integer> status = umsAdmin.status; @Generated("org.mybatis.generator.api.MyBatisGenerator") public static final class UmsAdmin extends SqlTable { public final SqlColumn<Long> id = column("id", JDBCType.BIGINT); public final SqlColumn<String> username = column("username", JDBCType.VARCHAR); public final SqlColumn<String> password = column("password", JDBCType.VARCHAR); public final SqlColumn<String> icon = column("icon", JDBCType.VARCHAR); public final SqlColumn<String> email = column("email", JDBCType.VARCHAR); public final SqlColumn<String> nickName = column("nick_name", JDBCType.VARCHAR); public final SqlColumn<String> note = column("note", JDBCType.VARCHAR); public final SqlColumn<Date> createTime = column("create_time", JDBCType.TIMESTAMP); public final SqlColumn<Date> loginTime = column("login_time", JDBCType.TIMESTAMP); public final SqlColumn<Integer> status = column("status", JDBCType.INTEGER); public UmsAdmin() { super("ums_admin"); } } } - 利用好MBG生成的代码即可完成单表的CRUD操作了，比如下面最常见的操作。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Autowired private UmsAdminMapper adminMapper; @Override public void create(UmsAdmin entity) { adminMapper.insert(entity); } @Override public void update(UmsAdmin entity) { adminMapper.updateByPrimaryKeySelective(entity); } @Override public void delete(Long id) { adminMapper.deleteByPrimaryKey(id); } @Override public UmsAdmin select(Long id) { Optional<UmsAdmin> optionalEntity = adminMapper.selectByPrimaryKey(id); return optionalEntity.orElse(null); } @Override public List<UmsAdmin> listAll(Integer pageNum, Integer pageSize) { PageHelper.startPage(pageNum, pageSize); return adminMapper.select(SelectDSLCompleter.allRows()); } } 进阶使用
想要用好Dynamic SQL，上面的基础操作是不够的，还需要一些进阶的使用技巧。
SqlBuilder

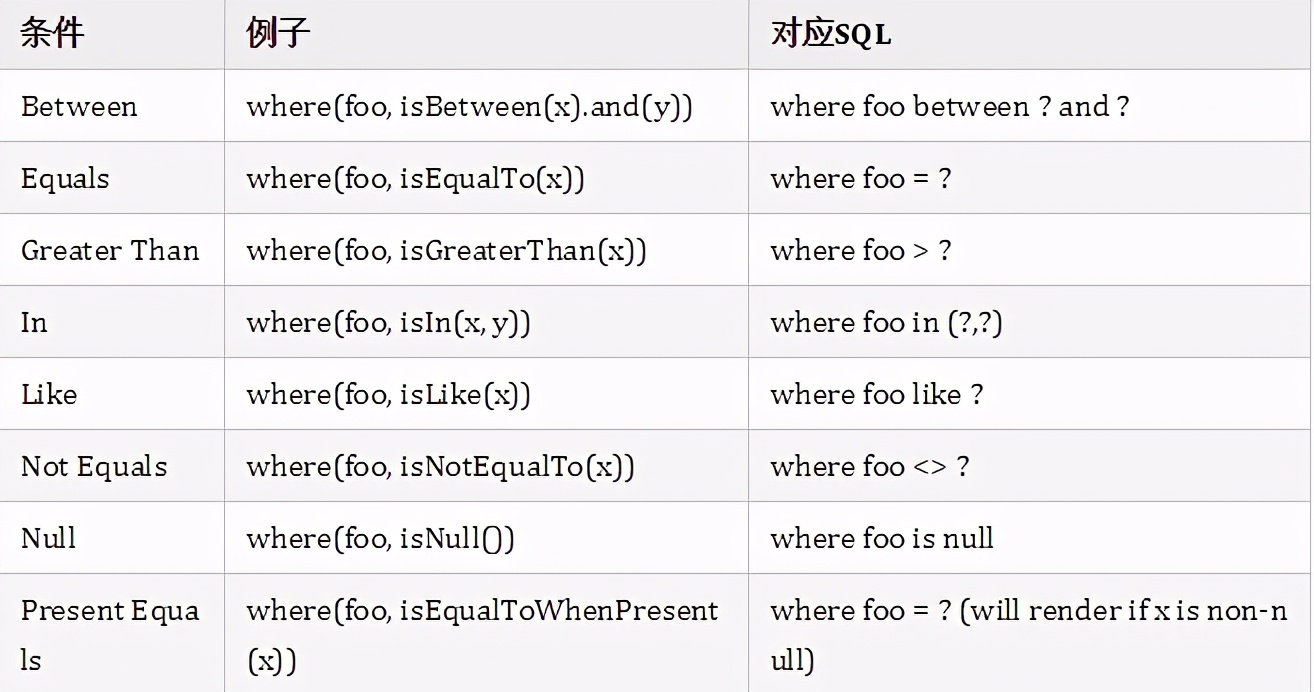

SqlBuilder是一个非常有用的类，使用它可以灵活地构建SQL语句的条件，一些常用的条件构建方法如下。
StatementProvider
回想一下之前我们在mapper.xml中定义select标签的方式，各个select标签相当于Statement。而这里的StatementProvider好比是Statement中参数和SQL语句的封装，方便以Java的方式创建Statement。
条件查询
使用SqlBuilder类构建StatementProvider，然后调用Mapper接口中的方法即可。
- 这里以按用户名和状态查询后台用户并按创建时间降序排列为例，SQL实现如下；
SELECT id, username, PASSWORD, icon, email, nick_name, note, create_time, login_time, STATUS FROM ums_admin WHERE ( username = 'macro' AND STATUS IN ( 0, 1 ) ) ORDER BY create_time DESC; - 使用Dynamic SQL对应的Java代码实现如下，使用SqlBuilder的select方法可以指定查询列，使用from方法可以指定查询表，使用where方法可以构建查询条件，使用orderBy方法可以指定排序。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public List<UmsAdmin> list(Integer pageNum, Integer pageSize, String username, List<Integer> statusList) { PageHelper.startPage(pageNum, pageSize); SelectStatementProvider selectStatement = SqlBuilder.select(UmsAdminMapper.selectList) .from(UmsAdminDynamicSqlSupport.umsAdmin) .where(UmsAdminDynamicSqlSupport.username, isEqualToWhenPresent(username)) .and(UmsAdminDynamicSqlSupport.status, isIn(statusList)) .orderBy(UmsAdminDynamicSqlSupport.createTime.descending()) .build() .render(RenderingStrategies.MYBATIS3); return adminMapper.selectMany(selectStatement); } } Lambda条件查询
使用Lambda表达式实现单表条件查询更加简单，实现上面的条件查询，对应Java代码实现如下。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public List<UmsAdmin> lambdaList(Integer pageNum, Integer pageSize, String username, List<Integer> statusList) { PageHelper.startPage(pageNum, pageSize); List<UmsAdmin> list = adminMapper.select(c -> c.where(UmsAdminDynamicSqlSupport.username, isEqualToWhenPresent(username)) .and(UmsAdminDynamicSqlSupport.status, isIn(statusList)) .orderBy(UmsAdminDynamicSqlSupport.createTime.descending())); return list; } } 子查询
之前使用MBG需要在mapper.xml中手写SQL才能实现子查询，使用Dynamic SQL可以直接在Java代码中实现。
- 这里以按角色ID查询后台用户为例，SQL实现如下；
SELECT * FROM ums_admin WHERE id IN ( SELECT admin_id FROM ums_admin_role_relation WHERE role_id = 1 ) - 使用Dynamic SQL对应的Java代码实现如下，可以发现SqlBuilder的条件构造方法isIn中还可以嵌套SqlBuilder的查询。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public List<UmsAdmin> subList(Long roleId) { SelectStatementProvider selectStatement = SqlBuilder.select(UmsAdminMapper.selectList) .from(UmsAdminDynamicSqlSupport.umsAdmin) .where(UmsAdminDynamicSqlSupport.id, isIn(SqlBuilder.select(UmsAdminRoleRelationDynamicSqlSupport.adminId) .from(UmsAdminRoleRelationDynamicSqlSupport.umsAdminRoleRelation) .where(UmsAdminRoleRelationDynamicSqlSupport.roleId, isEqualTo(roleId)))) .build() .render(RenderingStrategies.MYBATIS3); return adminMapper.selectMany(selectStatement); } } Group和Join查询
涉及到多表查询，之前使用MBG的时候基本只能在mapper.xml中手写SQL实现，使用Dynamic SQL可以支持多表查询。
- 这里以按角色统计后台用户数量为例，SQL实现如下；
SELECT ur.id AS roleId, ur.NAME AS roleName, count( ua.id ) AS count FROM ums_role ur LEFT JOIN ums_admin_role_relation uarr ON ur.id = uarr.role_id LEFT JOIN ums_admin ua ON uarr.admin_id = ua.id GROUP BY ur.id; - 先在Dao中添加一个groupList方法，然后使用@Results注解定义好resultMap；
/** * Created by macro on 2020/12/9. */ public interface UmsAdminDao { @SelectProvider(type = SqlProviderAdapter.class, method = "select") @Results(id = "RoleStatResult", value = { @Result(column = "roleId", property = "roleId", jdbcType = JdbcType.BIGINT, id = true), @Result(column = "roleName", property = "roleName", jdbcType = JdbcType.VARCHAR), @Result(column = "count", property = "count", jdbcType = JdbcType.INTEGER) }) List<RoleStatDto> groupList(SelectStatementProvider selectStatement); } - 然后在Service中调用groupList方法传入StatementProvider即可，对应的Java代码实现如下。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public List<RoleStatDto> groupList() { SelectStatementProvider selectStatement = SqlBuilder.select(UmsRoleDynamicSqlSupport.id.as("roleId"), UmsRoleDynamicSqlSupport.name.as("roleName"), count(UmsAdminDynamicSqlSupport.id).as("count")) .from(UmsRoleDynamicSqlSupport.umsRole) .leftJoin(UmsAdminRoleRelationDynamicSqlSupport.umsAdminRoleRelation) .on(UmsRoleDynamicSqlSupport.id, equalTo(UmsAdminRoleRelationDynamicSqlSupport.roleId)) .leftJoin(UmsAdminDynamicSqlSupport.umsAdmin) .on(UmsAdminRoleRelationDynamicSqlSupport.adminId, equalTo(UmsAdminDynamicSqlSupport.id)) .groupBy(UmsRoleDynamicSqlSupport.id) .build() .render(RenderingStrategies.MYBATIS3); return adminDao.groupList(selectStatement); } } 条件删除
使用Dynamic SQL实现条件删除，直接调用Mapper接口中生成好的delete方法即可。
- 这里以按用户名删除后台用户为例，SQL实现如下；
DELETE FROM ums_admin WHERE username = 'andy'; - 使用Dynamic SQL对应Java中的实现如下。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public void deleteByUsername(String username) { DeleteStatementProvider deleteStatement = SqlBuilder.deleteFrom(UmsAdminDynamicSqlSupport.umsAdmin) .where(UmsAdminDynamicSqlSupport.username, isEqualTo(username)) .build() .render(RenderingStrategies.MYBATIS3); adminMapper.delete(deleteStatement); } } 条件修改
使用Dynamic SQL实现条件修改，直接调用Mapper接口中生成好的update方法即可。
- 这里以按指定ID修改后台用户的状态为例，SQL实现如下；
UPDATE ums_admin SET STATUS = 1 WHERE id IN ( 1, 2 ); - 使用Dynamic SQL对应Java中的实现如下。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public void updateByIds(List<Long> ids, Integer status) { UpdateStatementProvider updateStatement = SqlBuilder.update(UmsAdminDynamicSqlSupport.umsAdmin) .set(UmsAdminDynamicSqlSupport.status).equalTo(status) .where(UmsAdminDynamicSqlSupport.id, isIn(ids)) .build() .render(RenderingStrategies.MYBATIS3); adminMapper.update(updateStatement); } } 一对多查询
使用Dynamic SQL也可以实现一对多查询，只是由于Java注解无法实现循环引用，所以一对多的resultMap只能在mapper.xml来配置，这可能是唯一需要使用mapper.xml的地方。
- 这里以按ID查询后台用户信息（包含对应角色列表）为例，SQL实现如下；
SELECT ua.*, ur.id AS role_id, ur.NAME AS role_name, ur.description AS role_description, ur.create_time AS role_create_time, ur.STATUS AS role_status, ur.sort AS role_sort FROM ums_admin ua LEFT JOIN ums_admin_role_relation uarr ON ua.id = uarr.admin_id LEFT JOIN ums_role ur ON uarr.role_id = ur.id WHERE ua.id = 1 - 然后在Dao接口中添加selectWithRoleList方法，这里使用@ResultMap注解引用mapper.xml中定义的resultMap；
/** * Created by macro on 2020/12/9. */ public interface UmsAdminDao { @SelectProvider(type = SqlProviderAdapter.class, method = "select") @ResultMap("AdminRoleResult") AdminRoleDto selectWithRoleList(SelectStatementProvider selectStatement); } - 在mapper.xml中添加名称为AdminRoleResult的resultMap，这里有个小技巧，可以直接引用在Mapper接口中定义好的resultMap；
<resultMap id="AdminRoleResult" type="com.macro.mall.tiny.domain.AdminRoleDto" extends="com.macro.mall.tiny.mbg.mapper.UmsAdminMapper.UmsAdminResult"> <collection property="roleList" resultMap="com.macro.mall.tiny.mbg.mapper.UmsRoleMapper.UmsRoleResult" columnPrefix="role_"> </collection> </resultMap> - 然后在Service实现类中调用即可，为了方便结果集映射给查询列取了别名。
/** * 后台用户管理Service实现类 * Created by macro on 2020/12/8. */ @Service public class UmsAdminServiceImpl implements UmsAdminService { @Override public AdminRoleDto selectWithRoleList(Long id) { List<BasicColumn> columnList = new ArrayList<>(CollUtil.toList(UmsAdminMapper.selectList)); columnList.add(UmsRoleDynamicSqlSupport.id.as("role_id")); columnList.add(UmsRoleDynamicSqlSupport.name.as("role_name")); columnList.add(UmsRoleDynamicSqlSupport.description.as("role_description")); columnList.add(UmsRoleDynamicSqlSupport.createTime.as("role_create_time")); columnList.add(UmsRoleDynamicSqlSupport.status.as("role_status")); columnList.add(UmsRoleDynamicSqlSupport.sort.as("role_sort")); SelectStatementProvider selectStatement = SqlBuilder.select(columnList) .from(UmsAdminDynamicSqlSupport.umsAdmin) .leftJoin(UmsAdminRoleRelationDynamicSqlSupport.umsAdminRoleRelation) .on(UmsAdminDynamicSqlSupport.id, equalTo(UmsAdminRoleRelationDynamicSqlSupport.adminId)) .leftJoin(UmsRoleDynamicSqlSupport.umsRole) .on(UmsAdminRoleRelationDynamicSqlSupport.roleId, equalTo(UmsRoleDynamicSqlSupport.id)) .where(UmsAdminDynamicSqlSupport.id, isEqualTo(id)) .build() .render(RenderingStrategies.MYBATIS3); return adminDao.selectWithRoleList(selectStatement); } } 总结
当我们使用MyBatis官方代码生成器MBG时，配置的targetRuntime决定了使用它的使用方式。Dynamic SQL更倾向于使用Java API来实现SQL操作，传统的方式更倾向于在mapper.xml中手写SQL来实现SQL操作。虽然MyBatis官方推荐使用Dynamic SQL，但选择哪种方式全看个人习惯了！
