SpringBoot咋使用PageHelper实现数据分页?
前言
我们在做页面查询的时候由于页面无法一次性展示所有的数据,所以采用一种分段式的展示策略—分页查询,实现分页查询的方式有很多种方式,比如sql中的limit,mybatisplus带的分页插件等等,这里我们介绍一下如何在SpringBoot中使用PageHelper插件实现分页查询。
正文
PageHelper
PageHelper是针对MyBatis最方便的分页插件PageHelper支持任何复杂的单表,多表查询。 它有以下特点:
- PageHelper不支持嵌套结果映射.
- PageHelper本质上是两次查询,第一次是对记录总数量的查询,第二次是对记录的查询。
- 对记录的查询是利用了mybatis提供的拦截器,取得ThreadLocal的pageSize和pageNo,重新拼装分页sql,完成分页。实际上是在sql后面拼接limit来实现的。
limit分页查询的弊端:
- 当limit offset rows中的offset很大时,会出现效率问题,所以数据规模大是不推荐使用PageHelper来实现分页。
- 实际的开发过程中我们采用自己手写两次查询,在第二次对记录的查询是采用子查询的方式来对性能进行优化。
select * from test where val=4 limit 300000,5
优化成:
select * from test a inner join (select id from test where val=4 limit 300000,5) b on a.id=b.id
所以,如果在数据量不大的情况下可以使用PageHelper,否则就不推荐使用PageHelper了。
SpringBoot使用PageHelper实现数据分页
Maven依赖
<!--pagehelper--> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.5</version> </dependency>
application.properties:配置类
#Paging assistant configuration #配置数据库 pagehelper.helper-dialect=mysql #页参数合理化 pagehelper.reasonable=true #启用了分页,并且先执行了count后面的查询也拼接了limit pagehelper.support-methods-arguments=true #如果POJO或者Map中发现了countSql属性,就会作为count参数使用 pagehelper.params=count=countSql #mybatis log mybatis.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl
PageRequestPam:请求的抽象类
/** * 分页模糊查询请求的封装类 */ @Setter @Getter @ToString public abstract class PageRequestPam implements Serializable { private static final long serialVersionUID = 1L; private int pageNum; //页面序号 private int pageSize; //页面大小 }
UserInfoForSearchRes:请求类
/** * 这是用户查询的封装类 */ @Setter @Getter @ToString @ApiModel("用户查询请求类") public class UserInfoForSearchRes extends PageRequestPam { private static final long serialVersionUID = -5625703056478578435L; @ApiModelProperty( notes = "用户名", example = "xiyuan666") private String userName; @ApiModelProperty( notes = "查询开始时间") private Date searchStartTime; @ApiModelProperty( notes = "查询结束时间") private Date searchEndTime; }
PageUtils:分页的结果工具类
public class PageUtils { /** * 将分页信息封装到统一的接口 * @param pam * @param pageInfo * @return */ public static Page getPageResult(PageRequestPam pam, PageInfo<?> pageInfo) { Page page = new Page(); page.setPageNo(pageInfo.getPageNum()); page.setPageSize(pageInfo.getPageSize()); page.setTotalSize(pageInfo.getTotal()); page.setTotalPages(pageInfo.getPages()); page.setValue(pageInfo.getList()); return page; } }
Page:分页结果的封装类
/** * 分页查询的结果封装类 */ @Data public class Page implements Serializable { private static final long serialVersionUID = 1L; private int pageNo;//当前页 private int pageSize;//当前页大小 private long totalSize;//记录总数 private int totalPages;//页码总数 private Object value; }
验证
分页查询接口
@PostMapping("/queryUserListPage") @ApiOperation(value = "用户分页模糊查询") @ControllerMethodLog public ResponseResult queryUserListPage(@RequestBody UserInfoForSearchRes userInfoForSearchRes) { long startTime = System.currentTimeMillis(); //获取开始时间 int pageNum = userInfoForSearchRes.getPageNum(); int pageSize = userInfoForSearchRes.getPageSize(); PageHelper.startPage(pageNum, pageSize); List<UserInfoPojo> list = userService.getUserInfoByPage(userInfoForSearchRes); Page page= PageUtils.getPageResult(userInfoForSearchRes, new PageInfo<UserInfoPojo>(list)); long endTime = System.currentTimeMillis(); //获取结束时间 log.info("用户模块分页查询-总条数:" + list.size() + "用时:" + (endTime - startTime) + "ms"); return ResponseResult.success(page, ConstantsUtil.QUERY_SUCCESS); }

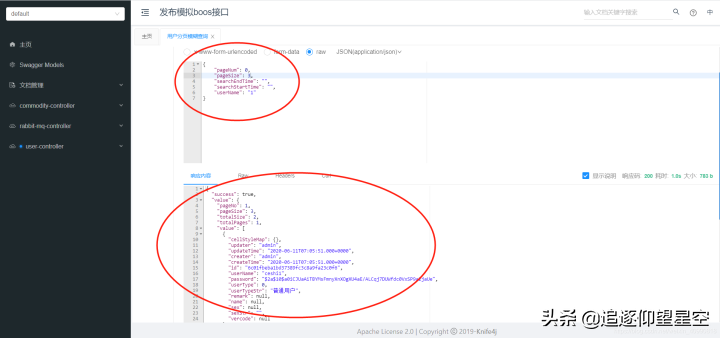

通过knife4j访问分页查询接口

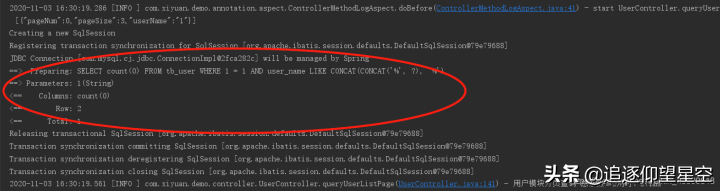

控制台打印信息
